Intel Pentium J2900 Muaj PC Nrog Dual LAN 4 COM

Khoom Specification

CPU	Pentium J2900 4 Cores 4 Threads Processor, 2.66GHz Tawg Zaus, 2 MB L2 Cache, 10W TDP
GPU	Intel^®HD Graphics rau Intel Atom^®Processor Z3700 Series
Nco	1 * 204 Pin DDR3L SO-DIMM RAM, Mus txog 8GB
Hard Disk	1 * MSATA SSD, 1 * 2.5 nti SATA HDD / SSD
Ethernet	2 * Realtek 8111H Gigabit Ethernet, txhawb kev sawv ntawm LAN
Expansion Qhov	1 * mini-PCIE Slot, txhawb WIFI / 4G module nthuav
I/O interfaces	1USB3. 2 LAN, 1 * AUD In/Out, 1 * VGA, 1 * HDMI, 1 * DC 12V, 1 * Fais fab hloov
Kev Ua Haujlwm	Windows 7, Windows 10, Linux, thiab lwm yam.
BIOS	AMI BIOS
Hwj chim	1 * DC 12V / 4Pin ATX fais fab mov
Khoom siv	Aluminium Alloy
Loj	136mm * 126mm * 46mm
Qhov hnyav	Txog 0.65KG
Kev teeb tsa	Txhawb Desktop / Phab Ntsa Mounted
Environmental Humidity	0%~95%
Kev ua haujlwm kub	0 degree ~ 60 degree

Khoom nta

Lub processor muaj 4 cores thiab 4 threads, kom ntseeg tau tias du thiab muaj peev xwm ua haujlwm tau zoo rau koj daim ntawv thov kev lag luam. Nrog rau qhov tawg zaus ntawm 2.66GHz, nws tuaj yeem daws cov haujlwm xav tau yooj yim.

Lub 2 MB L2 cache ntxiv txhim kho kev ua haujlwm nrawm thiab ua haujlwm. Dab tsi ntxiv, nrog rau qis 10W TDP (Thermal Design Power), nws tsis tsuas yog txuag lub zog tab sis kuj txo cov hluav taws kub, ua rau nws zoo tagnrho rau kev siv hauv kev lag luam ib puag ncig qhov kev ntseeg siab thiab kev ruaj ntseg yog qhov tseem ceeb.

Txawm hais tias koj tab tom khiav lag luam software nyuaj lossis tswj ntau cov txheej txheem ib txhij, qhov kev lag luam PC no nrog Pentium J2900 processor yog qhov kev xaiv zoo tshaj plaws kom tau raws li koj xav tau.

Qhov no muaj PC nta 1 x 204 Pin DDR3L SO-DIMM RAM qhov, tso cai rau txog li 8GB ntawm lub cim xeeb. Qhov no enables seamless multitasking thiab du khiav ntawm complex industrial software.

Tsis tas li ntawd, nws muaj qhov yooj yim cia nrog 1 x mSATA SSD thiab 1 x 2.5 nti SATA HDD / SSD hard disk. Koj tuaj yeem xaiv qhov sib xyaw ua ke uas zoo tshaj plaws rau koj cov kev xav tau, ua kom cov ntaub ntawv nkag tau sai thiab qhov chaw cia txaus rau tag nrho koj cov ntaub ntawv tseem ceeb.

Lub khoos phis tawj muaj 4 * RS232 COM cov chaw nres nkoj, suav nrog COM1 thiab COM2, uas txhawb nqa kho vajtse dhia cap teeb tsa RS232 / 485 kev sib txuas lus raws tu qauv, ua kom yooj yim thiab muaj peev xwm nthuav dav ntau yam uas tuaj yeem yooj yim rau kev tswj hwm ntawm ntau yam khoom siv sab nraud, nrog rau lub khoos phis tawj cov kev ua haujlwm siab heev.

Product Advantage

Qhov no yog lub khoos phis tawj desktop nrog HDMI chaw nres nkoj thiab VGA chaw nres nkoj, muaj peev xwm ntawm dual-screen zaub ntawm kev thov. Cov neeg siv tau yooj yim toggle ntawm synchronous thiab asynchronous zaub hom, ua tiav qhov ua haujlwm tau zoo thiab ua haujlwm tau zoo. Nrog rau qhov kev xaiv ntau yam, tus neeg siv tuaj yeem muaj qhov zoo tshaj plaws ntawm ob lub ntiaj teb, nthuav lawv qhov kev pom thiab txhim kho lawv cov kev paub pom.

Txais siv lub tshuab hluav taws xob tsis muaj hlau lub cev ua kom sov, siv tag nrho aluminium alloy lub cev rau qhov siab tshaj plaws cua sov dissipation thiab superior thermal kev ua tau zoo, txawm nyob rau hauv qhov kub thiab txias ib puag ncig, thiab boasts ib tug loj tshav kub dissipation cheeb tsam yam tsis muaj annoyance ntawm kiv cua suab nrov, uas ua kom muaj plua plav thiab khib nyiab tsawg. nkag, ua rau nws haum rau siv nyob rau hauv cleanroom ib puag ncig.

Tsis tas li ntawd, tus tswv tsev yog tsim los ua haujlwm 7 * 24H nyob rau hauv ib qho chaw ruaj khov thiab txhim khu kev qha, muaj peev xwm tiv taus kev siv tsis tu ncua hauv qhov kev xav tau siab.

Lub tsev lag luam mini yog tsim los nrog kev tiv thaiv ib puag ncig kom tiv taus kev lag luam hnyav xws li tiv thaiv corrosion, tiv thaiv kev vibration shock, thiab tiv thaiv kev cuam tshuam. Qhov no ua kom nws tuaj yeem ua haujlwm tau zoo nyob hauv ntau qhov chaw ib puag ncig.

Kev teeb tsa khoom

Yog tias koj xav tau ib qho kev teeb tsa ib txwm muaj, qhov kev xaiv ntawm lub desktop tso cai rau koj tso cov khoom lag luam pc rau ntawm lub rooj lossis chaw ua haujlwm, muab kev nkag tau yooj yim thiab paub txog kev teeb tsa. Qhov no yog qhov zoo tagnrho rau cov chaw uas qhov chaw tsis muaj kev txwv thiab koj xav tau qhov chaw yooj yim rau kev sib cuam tshuam ceev.

Ntawm qhov tod tes, rau qhov chaw nyob qhov twg qhov chaw nyob ntawm tus nqi lossis rau kev saib zoo dua, cov phab ntsa mounted yog qhov kev xaiv zoo. Nws tso cai rau koj kom txuag tau qhov muaj txiaj ntsig hauv pem teb lossis rooj qhov chaw thaum tseem muaj lub pc muaj nyob hauv qhov yooj yim ncav cuag. Txawm hais tias nws yog nyob rau hauv lub Hoobkas, warehouse, los yog chav tswj, phab ntsa mounting muaj peev xwm muab ib tug ntau txhim khu kev qha thiab zoo layout.

Khoom siv

Tsim los ua kom tau raws li lub Hoobkas hauv pem teb thiab ntau qhov chaw tshwj xeeb rau kev ua haujlwm, Gigabit network chaw nres nkoj, COM RS232/485 chaw nres nkoj, USB interface thiab cov ntsiab lus siab interface nthuav dav, kev siv ntau dua.

Ntim Cov ntsiab lus

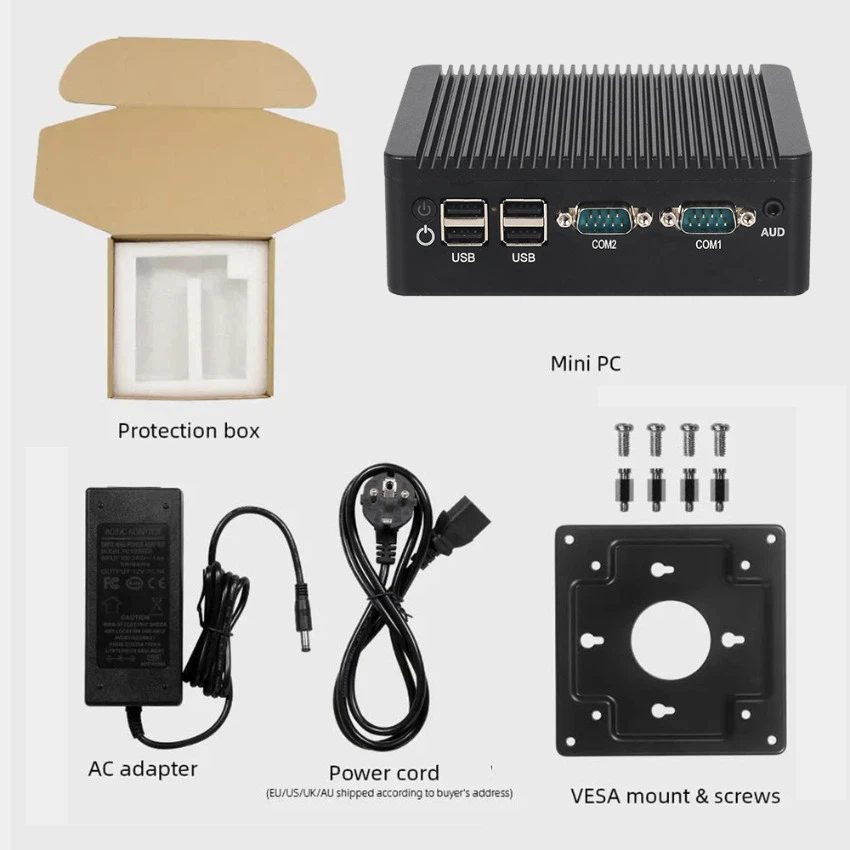

Lub pob yog ruaj khov nyob rau hauv ib tug ruaj khov cardboard lub thawv. Thaum kuaj xyuas, koj yuav pom ib yam khoom, tshwj xeeb yog X30G Pentium computer, nrog rau lub hwj chim adapter thiab ib lub hwj chim qaum.

Peb txaus siab rau peb tus kheej ntawm kev saib xyuas tshwj xeeb thaum lub sijhawm ntim khoom. Cov khoom lag luam thiab nws cov khoom siv ntau yam tau muab qhwv rau hauv lub hnab ntim dej tsis zoo, muab kev ntsuas dav dav ntawm kev tiv thaiv kev ya raws.

Tom qab ntawd, cov khoom no tau ruaj khov rau hauv lub thawv sab hauv uas siv lub rooj tsavxwm ua npuas ncauj, ua kom muaj kev ruaj ntseg zoo thiab tiv thaiv kev cuam tshuam. Thaum lub thawv sab hauv tau ruaj ntseg zoo, nws muab tso rau hauv lub thawv sab nraud.

Thaum kawg, lub thawv sab nrauv raug kaw nrog daim kab xev, kom ntseeg tau tias tag nrho cov ntsiab lus tseem nyob hauv lawv txoj haujlwm tsim thaum lub sijhawm thauj mus los.

Koj tuaj yeem ntseeg tau tias koj qhov kev yuav khoom muaj kev tiv thaiv zoo thiab npaj rau qhov kev paub tsis sib haum xeeb.

FAQ

Q: Kuv tuaj yeem nruab dab tsi hauv kuv lub computer?

A: Feem ntau nruab win7/win10/win11 system. Cov qauv tshwj xeeb tsuas tuaj yeem nruab WIN10, xws li: J4125, J4105, J6412, N5105, N4100 qauv.

Q: Kuv puas tuaj yeem nruab Windows 11?

A: Cov lus nug ntsig txog kev txhim kho win11 system:
● Nruab beta win11 system, tsis tas yuav kho TPM nti, tsis muaj nqi installation, ntsia tau ncaj qha tawm ntawm lub tsev rau khoom.
● Nruab qhov tseeb win11 system, tsis tas yuav kho TPM nti, tsuas yog yuav tsum tau them tus nqi ntawm qhov system tiag tiag, tsis tas yuav them tus nqi installation, kev teeb tsa tuaj yeem ncaj qha tawm ntawm cov khoom.
● Tsawg configuration tsis pom zoo rau nruab WIN11, nws raug nquahu kom nruab win11 rau kev teeb tsa ntawm Core lossis siab dua, win11 system yuav siv li 25G hard disk peev xwm.

Q: Muaj pes tsawg watts ntawm lub tshuab siv ib hnub twg.

A: Celeron series feem ntau nyob ib ncig ntawm 10-15 watts; Core nyob ib ncig ntawm 20 watts.
